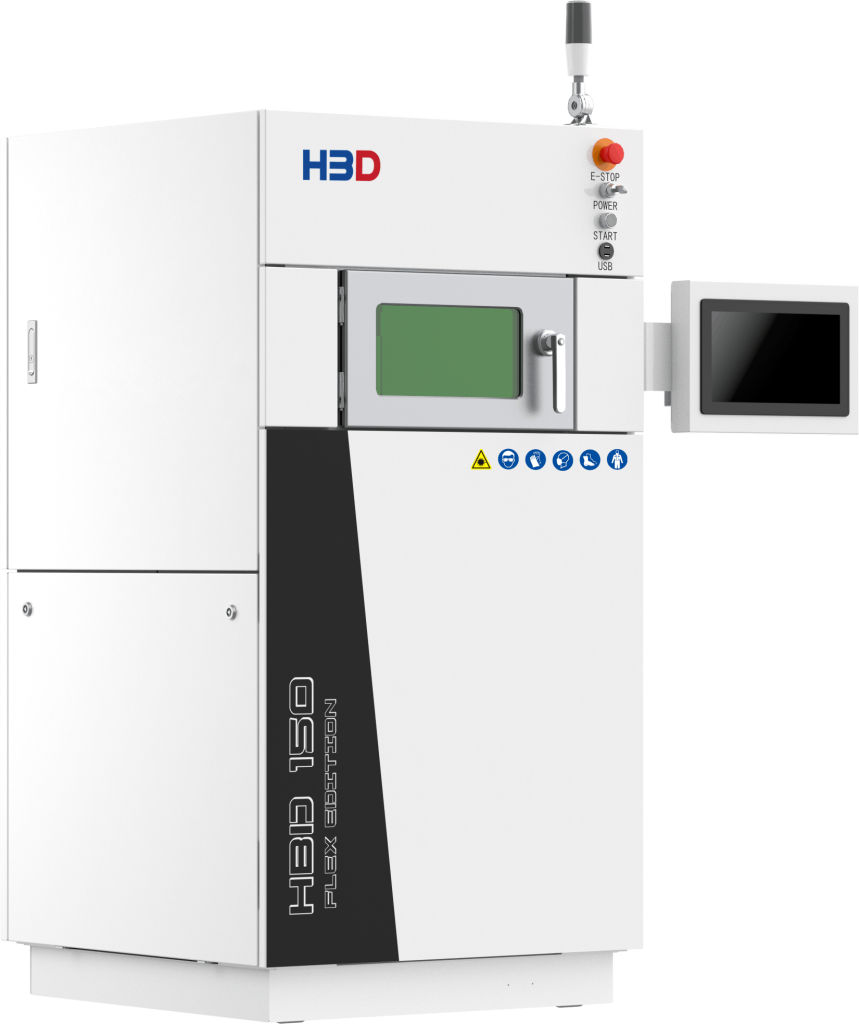

The HBD 150 Flex is a compact metal 3D printer purpose-built for education and scientific research. With a footprint of less than 1.5 m², it improves space utilization and supports flexible relocation. Featuring a modular recoater and an intuitive touchscreen wizard, the system is easy to operate, making it well suited for educational experiments as well as R&D applications. An integrated safe-loop air purification system, together with multiple interlock mechanisms, ensures stable and secure operation.
HBD 150FLEX
Request Offer
Structure & Features
1
2
3
4
1Control System
The HBD 150 is equipped with a robust control system, offering comprehensive system logs for in-depth performance tracking. Its high-efficiency software is designed for swift data processing, ensuring precise control throughout the printing process.
2Intelligent Powder Spreading Module
HBD 150 employs a high-strength structure to guarantee even and reliable powder distribution. This module optimizes layer consistency, crucial for achieving complex geometries and fine surface finishes.
3Independent Purification System
Equipped with an independent purification system, with a dust removal rate of ≥99.9%, ensuring efficient and safe purification of metal power during the printing process, guaranteeing optimal building conditions and excellent printing quality.
4Advanced Printing System
Equipped with advanced printing capabilities, a single laser optical path enables full coverage of the printing surface. Its stable printing system ensures long-term operation, providing consistent and reliable production performance.
Get the Full Specs of the
HBD 150FLEX
Want to dive deeper into the capabilities of the HBD 150FLEX?
Download our product brochure to explore its full specifications, applications, and more.
PDF Download
PDF Download
Print Case Studies
Six-Axis Force Sensor
Designed for robotic wrists and fingers, this sensor achieves integrated and lightweight manufacturing, reducing lead time by 30%.
Porous Structure

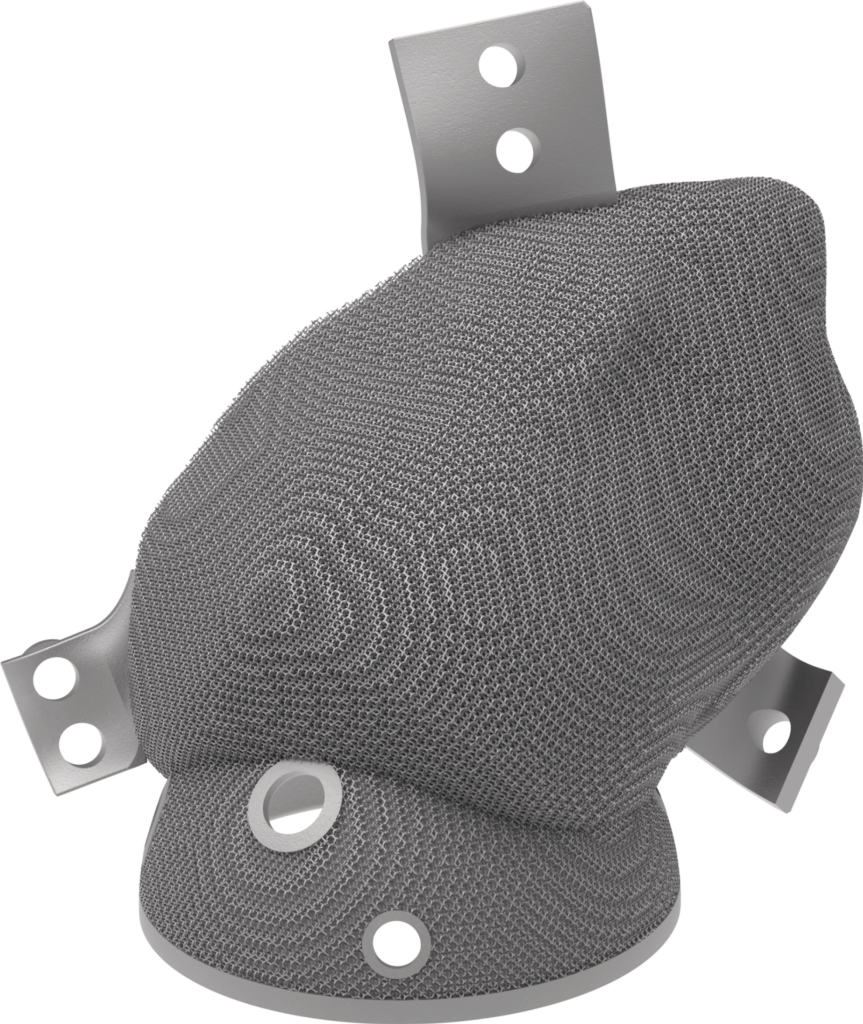

Metal 3D-printed medical hip implants feature a porous structure that promotes bone growth and enhances stability. This technology ensures precise customization, lightweight design, and improved patient comfort. The optimized geometry supports effective load distribution, significantly enhancing overall outcomes in hip replacement surgeries.
Enhance Your Workflow with
Our Auxiliary Equipment
HBD 150FLEX
Powder Sieving Machine
Achieve consistent powder quality with automated sieving and recycling, maximizing material reuse rate for critical metal AM processes.
Sawing Machine
Cut directly from build plates with precision, minimizing material loss for large-format metal AM parts.
Vacuum Drying Oven
Remove moisture contaminants, preserving powder flowability and preventing hydrogen embrittlement.
Vacuum Heat Treatment Furnace
Eliminate oxidation while enhancing part density with precise thermal profiling for industrial-grade stress relief.
Technical Specifcations
Build Volume:
φ158mm x 100mm(Height Incl. Build Plate)
Laser Power:
2 Lasers, 300W
Layer Thickness:
30μm-50μm
Scanning Track Width:
40μm-80μm
Scanning Speed:
≤10m/s
Oxygen Content:
≤100ppm
Protective Atmosphere:
Integral sealed, automatic monitoring of oxygen content, recyeling cleaning and collection coefficient ≥ 99%
Relative Density:
99.9%+
Typical Accuracy:
0.05-0.1mm
Metal Powder:
Cobalt-chrome alloy
Process Parameter Configuration:
Tailored parameter set for the spedific application, user-modifiable
Weight:
Est. 500kg
Extornal Dimonsions:
850mm x 950mm x 1600mm
Power Supply:
AC220V, 50Hz, peak power ≤5kW, average power ≤3kW
Ready to Transform Your Production? Let’s Talk!
Our team is here to help you with pricing, customization options, and more. Contact us today for a tailored quote.
