The HBD 150D Flex is a compact metal 3D printer designed specifically for dental applications. With a footprint of less than 1.5 m², it improves space utilization and supports flexible relocation. Built with high-quality components and offering open access to dental process parameters, the system delivers consistent, high-quality output. A built-in safe recirculating purification system and multiple interlocks ensure stable operation.
HBD 150D FLEX
Request Offer
Structure & Features
1
2
3
4
1Control System
The HBD 150 is equipped with a robust control system, offering comprehensive system logs for in-depth performance tracking. Its high-efficiency software is designed for swift data processing, ensuring precise control throughout the printing process.
2Intelligent Powder Spreading Module
HBD 150 employs a high-strength structure to guarantee even and reliable powder distribution. This module optimizes layer consistency, crucial for achieving complex geometries and fine surface finishes.
3Efficient Purification Assurance
Equipped with an independent purification system, with a dust removal rate of ≥99.9%, ensuring efficient and safe purification of metal power during the printing process, guaranteeing optimal building conditions and excellent printing quality.
4Advanced Printing System
Equipped with advanced printing capabilities, a single laser optical path enables full coverage of the printing surface. Its stable printing system ensures long-term operation, providing consistent and reliable production performance.
Get the Full Specs of the
HBD 150D FLEX
Want to dive deeper into the capabilities of the HBD 150D FLEX?
Download our product brochure to explore its full specifications, applications, and more.
PDF Download
PDF Download
Print Case Studies

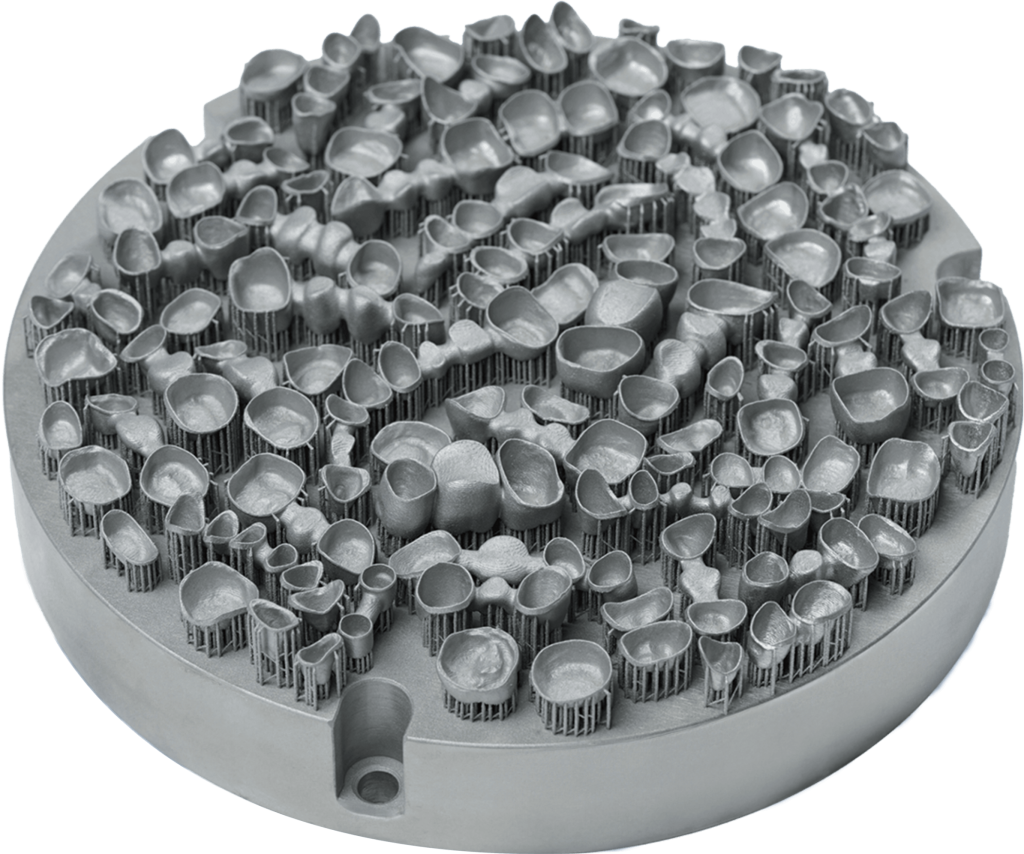

Dental Crown
The HBD 150D FLEX delivers consistent accuracy, making it an ideal solution for printing dental crowns with a precise fit and high-quality finish. Its advanced capabilities ensure that each crown meets the required standards for both function and comfort.

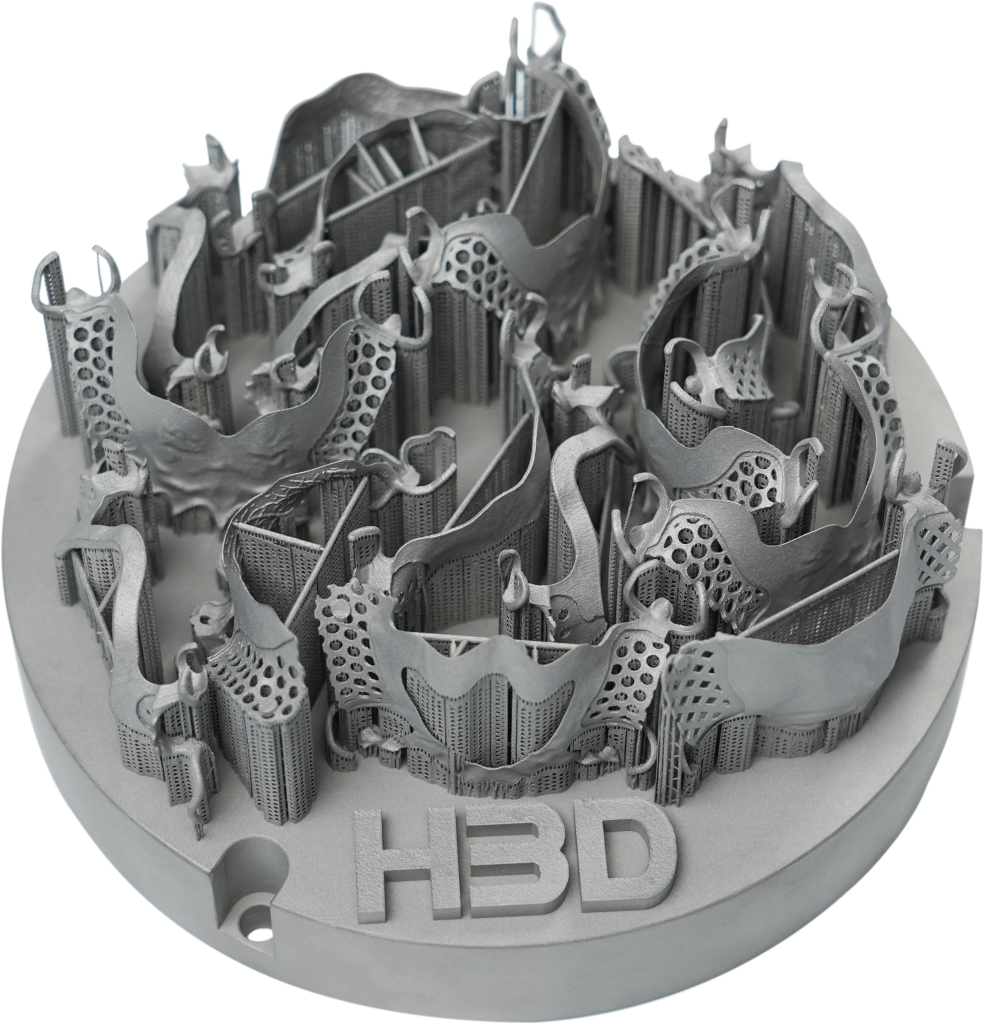

Framework
Metal 3D printing technology can achieve the printing of complex lattice structure framework, thereby improving strength-to-weight ratio, and precisely adapting to the individual oral structure of patients, ultimately enhancing the comfort, functionality, and lifespan of dental restorations.
Enhance Your Workflow with
Our Auxiliary Equipment
HBD 150D FLEX
Powder Sieving Machine
Achieve consistent powder quality with automated sieving and recycling, maximizing material reuse rate for critical metal AM processes.
Sawing Machine
Cut directly from build plates with precision, minimizing material loss for large-format metal AM parts.
Vacuum Drying Oven
Remove moisture contaminants, preserving powder flowability and preventing hydrogen embrittlement.
Vacuum Heat Treatment Furnace
Eliminate oxidation while enhancing part density with precise thermal profiling for industrial-grade stress relief.
Technical Specifcations
Build Volume:
φ158mm x 100mm(Height Incl. Build Plate)
Laser Power:
2 Lasers, 300W
Layer Thickness:
30μm-50μm
Scanning Track Width:
40μm-80μm
Scanning Speed:
≤10m/s
Oxygen Content:
≤100ppm
Protective Atmosphere:
Integral sealed, automatic monitoring of oxygen content, recyeling cleaning and collection coefficient ≥ 99%
Relative Density:
99.9%+
Typical Accuracy:
0.05-0.1mm
Metal Powder:
Cobalt-chrome alloy
Process Parameter Configuration:
Tailored parameter set for the spedific application, user-modifiable
Weight:
Est. 500kg
Extornal Dimonsions:
850mm × 950mm × 1600mm
Power Supply:
AC220V, 50Hz, peak power ≤5kW, average power ≤3kW
