The HBD 150 features a round base plate and is equipped with a highly efficient and safe independent atmosphere purification system, along with a sealed glovebox structure; multiple safety interlocks ensure stable operation, while the system adopts a modular recoater blade design for quick and easy replacement and provides process-parameter configurations for multiple materials, making it ideal for educational experiments and R&D.
HBD 150
Request Offer
Structure & Features
1
2
3
4
1Control System
The HBD 150 is equipped with a robust control system, offering comprehensive system logs for in-depth performance tracking. Its high-efficiency software is designed for swift data processing, ensuring precise control throughout the printing process.
2Intelligent Powder Spreading Module
HBD 150 employs a high-strength structure to guarantee even and reliable powder distribution. This module optimizes layer consistency, crucial for achieving complex geometries and fine surface finishes.
3Efficient Purification Assurance
Equipped with an independent purification system, with a dust removal rate of ≥99.9%, ensuring efficient and safe purification of metal power during the printing process, guaranteeing optimal building conditions and excellent printing quality.
4Advanced Printing System
Equipped with advanced printing capabilities, a single laser optical path enables full coverage of the printing surface. Its stable printing system ensures long-term operation, providing consistent and reliable production performance.
Get the Full Specs of the
HBD 150
Want to dive deeper into the capabilities of the HBD 150?
Download our product brochure to explore its full specifications, applications, and more.
PDF Download
PDF Download
Print Case Studies

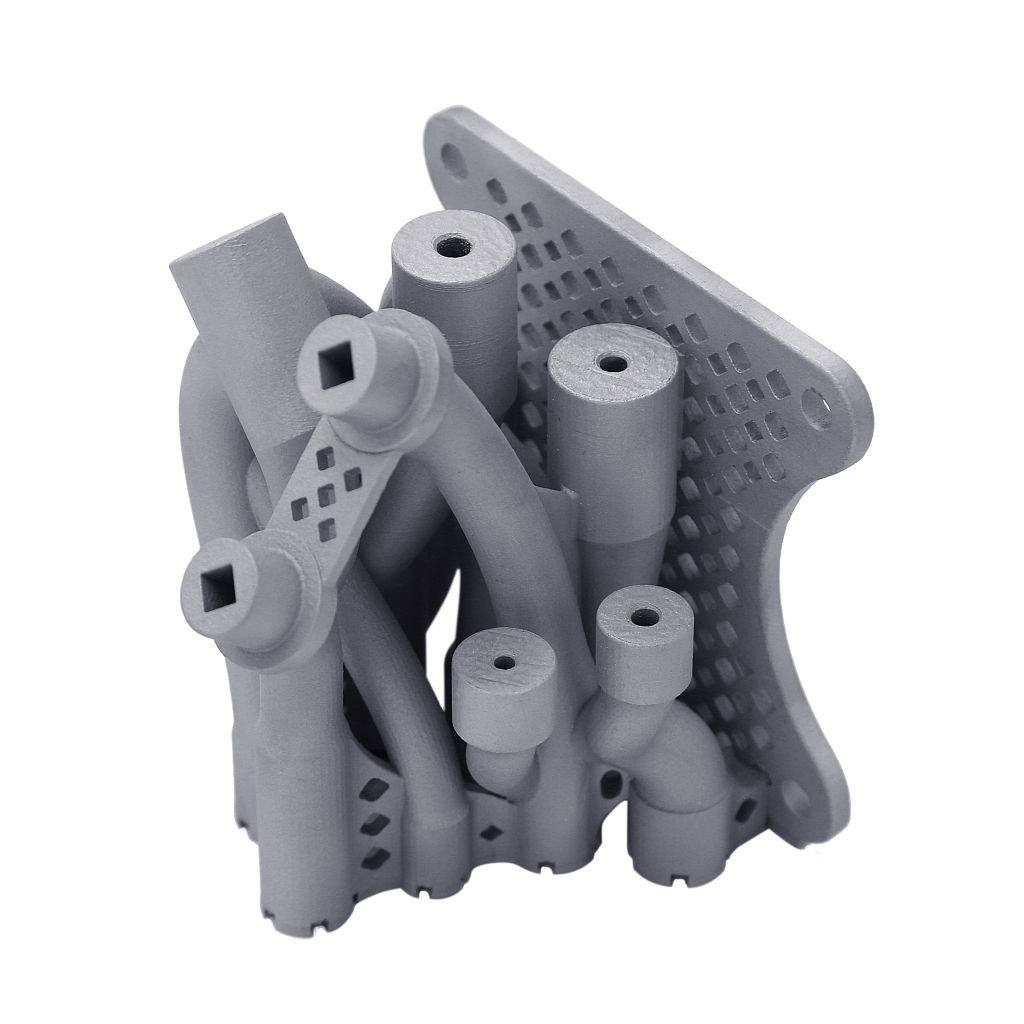

Hydraulic Manifold
Utilizing 3D metal printing for hydraulic manifolds offers the advantage of producing components with intricate internal channels, reducing the risk of leakage and improving hydraulic system efficiency. Customized designs can enhance fluid flow control and reduce the need for complex assembly, resulting in more reliable and cost-effective hydraulic systems.
Copper Condense
Metal 3D printing facilitates the production of copper induction coils with intricate geometries that enhance thermal and electrical performance. This technology allows for rapid prototyping and customization, optimizing designs for efficiency. The resulting coils provide improved heat transfer and energy efficiency in various applications.
Enhance Your Workflow with
Our Auxiliary Equipment
HBD 150
Powder Sieving Machine
Achieve consistent powder quality with automated sieving and recycling, maximizing material reuse rate for critical metal AM processes.
Sawing Machine
Cut directly from build plates with precision, minimizing material loss for large-format metal AM parts.
Vacuum Cleaner
Ensure worksafety with the containment for reactive metal powders, featuring explosion-proof design and zero-residue recovery.
Vacuum Drying Oven
Remove moisture contaminants, preserving powder flowability and preventing hydrogen embrittlement.
Vacuum Heat Treatment Furnace
Eliminate oxidation while enhancing part density with precise thermal profiling for industrial-grade stress relief.
Technical Specifcations
Build Volume:
φ158mm x 100mm(Height Incl. Build Plate)
Laser Power:
1 Laser, 300W/500W
2 Lasers, 300W
2 Lasers, 300W
Layer Thickness:
10μm-50μm
Scanning Track Width:
40μm-80μm
Scanning Speed:
≤10m/s
Oxygen Content:
≤100ppm
Protective Atmosphere:
Integral sealed, automatic monitoring of oxygen content, recyeling cleaning and collection coefficient ≥ 99%
Relative Density:
99.9%+
Typical Accuracy:
0.05-0.1mm
Metal Powder:
Titanium alloy, cobalt-chromium alloy, stainless steel, mold steel, etc.
Process Parameter Configuration:
Tailored parameter set for the spedific application, user-modifiable
Weight:
Est. 950kg
Extornal Dimonsions:
1150mm x 1150mm x 1830mm
Power Supply:
AC220V, 50/60Hz, peak power ≤4.3-4.5kW, average power ≤2.8-3kW
