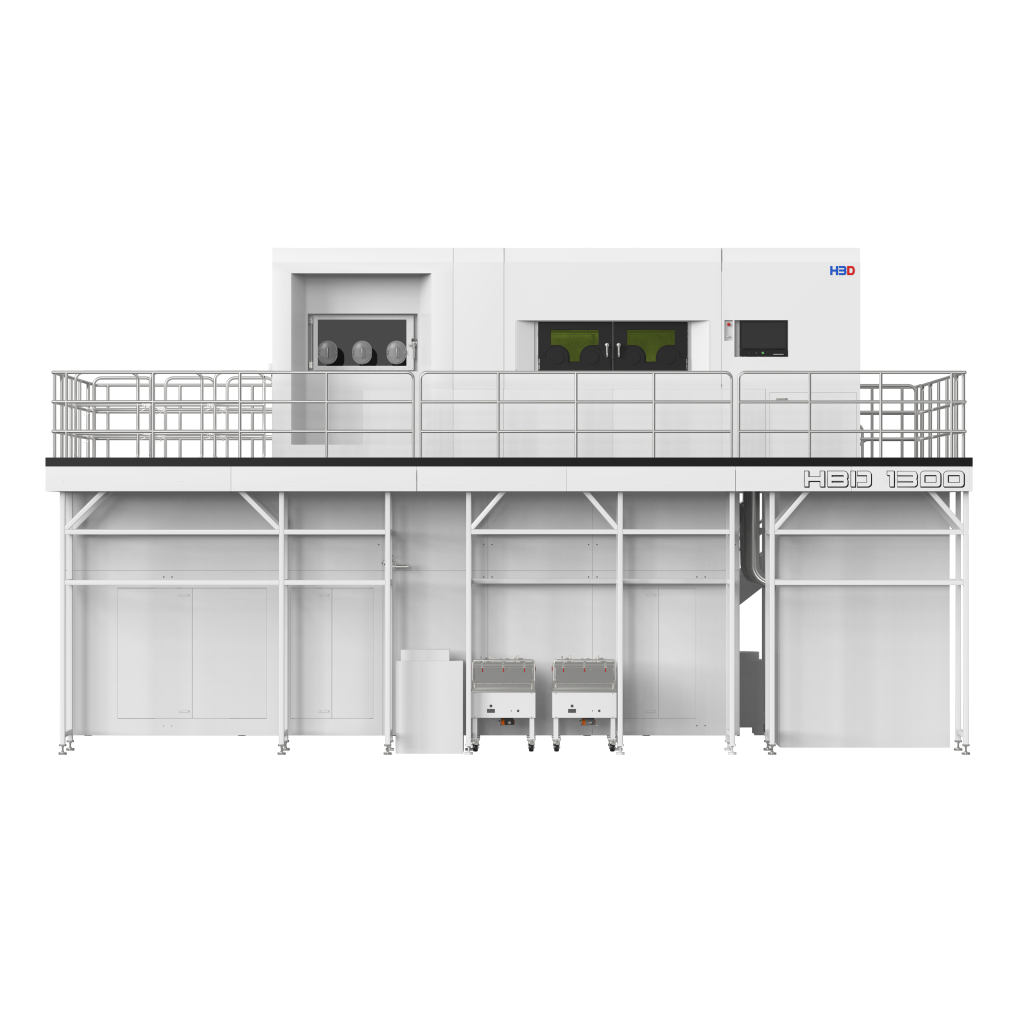

The HBD 1300 is a meter-scale AM system designed for aerospace, energy, and other industrial applications. It comes standard with ten-laser synchronous scanning, in-house developed galvanometer scanners, a uniform airflow-field design, and proprietary software and control systems to ensure high stability and consistent quality in large-format builds. It also features a long-life safety filtration system and an efficient inert-gas powder recirculation system, improving powder utilization and enabling safer, continuous production.
HBD 1300
Request Offer
Structure & Features
1
2
3
4
5
6
1Control System
The HBD 600 is equipped with a robust control system, offering comprehensive system logs for
in-depth performance tracking. Its high-efficiency software is designed for swift data processing,
ensuring precise control throughout the printing process.
2Intelligent Powder Spreading Module
Intelligent variable speed design and bidirectional re-coater completing the recoating process in
3 seconds, the HBD 600 employs a high-strength structure to guarantee even and reliable
powder distribution. This module optimizes layer consistency, crucial for achieving complex
geometries and fine surface finishes.
3Powder Collection
With hign volume collection containers, minimizes the frequency of powder changes. This setup
enhances productivity by reducing downtime during powder recycling and storage.
4Long-lasting Filtration System
The filtration system utilizes next-generation PTFE-coated filter elements, meeting H13 standards
with a capture efficiency of up to 99.9%, capable of trapping particles as small as 0.3μm. The filter
includes self-cleaning features, providing a filter element lifetime of over 5 years. Optimized
gas-flow configuration enables secure and efficient waste reclamation in inert gas environments,
ensuring optimal printing conditions.
5Precision 8-Laser System
Designed with a fully sealed optical path and precise water-cooled temperature control, the
8-laser system of the HBD 600 offers high accuracy and stability. The fixed-focus optical
structure enables consistent energy distribution, essential for producing high-resolution parts
with complex details.
6Automated Powder Feeding System
The automated powder supply system continuously monitors powder levels in the storage hopper,
enabling uninterrupted powder replenishment. This ensures a smooth, efficient printing process,
particularly useful for large builds or mass production runs.
Get the Full Specs of the
HBD 1300
Want to dive deeper into the capabilities of the HBD 1300?
Download our product brochure to explore its full specifications, applications, and more.
PDF Download
PDF Download
Print Case Studies
Enhance Your Workflow with
Our Auxiliary Equipment
HBD 1300
Powder Suction and Sieving-Machine
Achieve consistent powder quality with automated sieving and recycling, maximizing material reuse rate for critical metal AM processes.
Powder Supply Machine
Enable continuous 24/7 printing operations with closed-loop powder feeding and inert gas protection, eliminating manual handling risks.
Sand Blasting Machine
Deliver uniform surface finishing for complex metal parts.
Powder Suction Machine
Automate powder storage & transfer under inert environment.
Vacuum Cleaner
Ensure worksafety with the containment for reactive metal powders, featuring explosion-proof design and zero-residue recovery.
Vacuum Drying Oven
Remove moisture contaminants, preserving powder flowability and preventing hydrogen embrittlement.
Vacuum Heat Treatment Furnace
Eliminate oxidation while enhancing part density with precise thermal profiling for industrial-grade stress relief.
Wire Cutting Machine
Execute high-precision EDM cutting for refractory alloys, supporting complex support structure removal.
Technical Specifcations
Build Volume:
660mm x 660mm x 1250mm(height incl. build plate)
Laser Power:
8 Lasers, 500W/1000W
Layer Thickness:
20μm-120μm
Scanning Track Width:
70μm-200μm
Scanning Speed:
≤10m/s
Oxygen Content:
≤100ppm
Protective Atmosphere:
Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥ 99%
Relative Density:
99.9%+
Typical Accuracy:
0.05-0.2mm
Metal Powder:
Stainless steel, cobalt-chrome alloy, Hastelloy, Titanium alloy, Nickel-based alloy, Tool Steel, Aluminum alloy, and some refractory metals like Tungsten and Tantalum, etc.
Process Parameter Configuration:
Tailored parameter set for the specific application, user-modifiable
Weight:
Est. 16000kg
Extornal Dimonsions:
7050mm x 3630mm x 4480mm
Power Supply:
500W: AC380V,50/60Hz, peak power ≤35kW, average power ≤25kW
1000W: AC380V,50/60Hz, peak power ≤40kW, average power ≤30kW
1000W: AC380V,50/60Hz, peak power ≤40kW, average power ≤30kW
